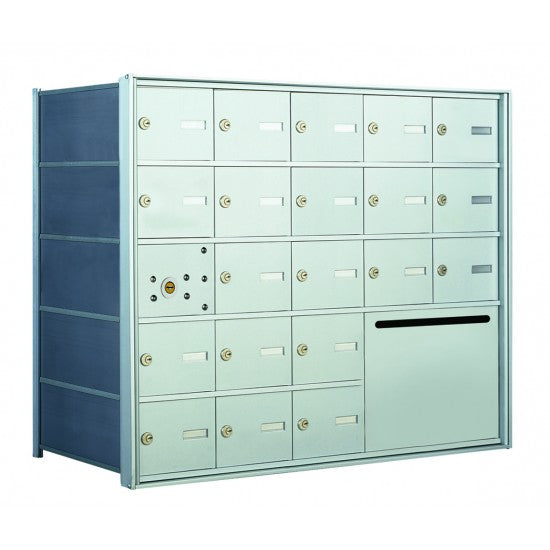

140055OUA - 20 Tenant Doors with 1 Master Door and 1 Outgoing Mail Compartment - 1400 Series USPS 4B+ Approved Horizontal Replacement Mailbox
Shipping Time
Type: Horizontal 1400
Barcode: 00763128221299
Model: 140055OUA
Subject to Stock and Availability
- Model: 140055OUA
- Weight: 75.00lb
- Dimensions: 17.00in x 33.88in x 28.50in
Horizontal Mailboxes are USPS approved for replacement installations. For new construction, see Cluster Box Units and 4C Horizontal Mailboxes.
Description
Product Details:
- Horizontal mailbox with 20 doors and 1 outgoing collection box, front load, fully recessed
- Horizontal mailbox unit is 5 doors high and 5 doors wide. One compartment reserved for USPS arrow lock
Finish or Material:
All aluminum construction with a clear anodized aluminum finish
Loading and Mounting:
Front loading for full in wall mounting and installation. Tenant mail retrieval and USPS delivery from front of mailbox. One compartment reserved for master / Postal access for delivery to unit.
Tenant Doors:
Tenant doors include 5-pin cam lock with 2 keys each
Outgoing Mail:
Outgoing mail compartment with mailslot (no lock)
Door Identification:
Number slot with paper cards for identification. Each tenant door includes clear plastic window w/metal backplate and card for tenant number identification and labeling in the field
Technical Information:
Door Width: 6-3/8" "Total Tenant Doors: 20
Tenant Door Height: 5""
Installation:
Installed Height:
Rough Opening Height is 28-1/2"
Installed Width:
Rough Opening Width is 33-7/8"
Installed Depth:
Minimum wall depth of 17" required
Material: Aluminum
