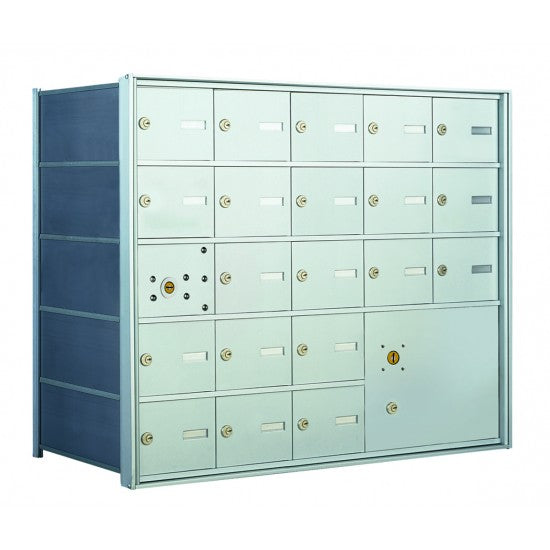

140055PLA - 20 Tenant Doors with 1 Master Door and 1 Parcel Locker - 1400 Series USPS 4B+ Approved Horizontal Replacement Mailbox


Shipping Time


For quicker lead times, chat or call us at 1-866-464-0005 and we will be glad to assist you.

Vendor: Florence
Type: Horizontal 1400
Barcode: 00763128221282
Model: 140055PLA

Subject to Stock and Availability

  • Model: 140055PLA
  • Weight: 75.00lb
  • Dimensions: 17.00in x 33.88in x 28.50in


Horizontal Mailboxes are USPS approved for replacement installations. For new construction, see Cluster Box Units and 4C Horizontal Mailboxes.


Product Details:
  • Horizontal mailbox with 20 doors and 1 parcel locker, front load, fully recessed
  • Horizontal mailbox unit is 5 doors high and 5 doors wide. One compartment reserved for USPS arrow lock

Finish or Material:
All aluminum construction with a clear anodized aluminum finish

Loading and Mounting:
Front loading for full in wall mounting and installation. Tenant mail retrieval and USPS delivery from front of mailbox. One compartment reserved for master / Postal access for delivery to unit.

Tenant Doors:
Tenant doors include 5-pin cam lock with 2 keys each

Parcel Lockers:
Includes Parcel locker door - a means of USPS package delivery. Dual, captive locking system allows USPS to deliver a package to the locker leaving the key in the tenant's mailbox. Package is retrieved by the tenant and key is retained securely in the lock for the Postal Service to retrieve and reuse for the next package delivery.

Door Identification:
Number slot with paper cards for identification. Each tenant door includes clear plastic window w/metal backplate and card for tenant number identification and labeling in the field

Technical Information:

Door Width: 6-3/8" "

Total Tenant Doors: 20
Tenant Door Height: 5""

Total Small Parcel Lockers: 1
Small Parcel Locker Height: 10-3/8"Hx12-7/8"W"


Installed Height:
Rough Opening Height is 28-1/2"

Installed Width:
Rough Opening Width is 33-7/8"

Installed Depth:
Minimum wall depth of 17" required

Material: Aluminum

Downloads & Product Information
