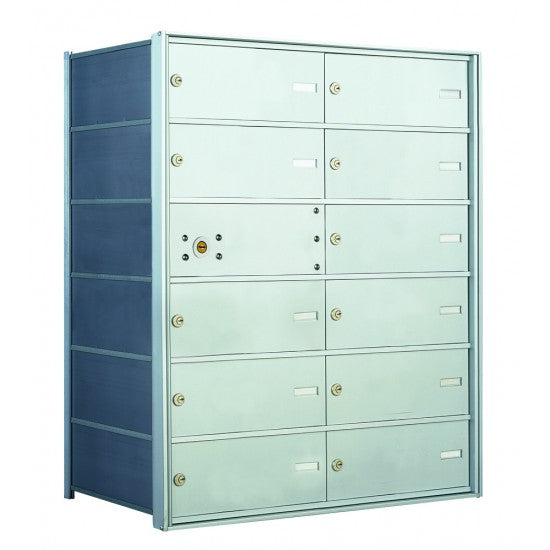

140064DA - 11 Tenant Doors with 1 Master Door - 1400 Series USPS 4B+ Approved Horizontal Replacement Mailbox
Shipping Time
Type: Horizontal 1400
Barcode: 00763128221343
Model: 140064DA
Subject to Stock and Availability
- Model: 140064DA
- Weight: 60.00lb
- Dimensions: 17.00in x 27.50in x 33.63in
Horizontal Mailboxes are USPS approved for replacement installations. For new construction, see Cluster Box Units and 4C Horizontal Mailboxes.
Description
Product Details:
- Horizontal mailbox with 11 double wide doors, front load, fully recessed
- Horizontal mailbox unit is 6 doors high and 4 doors wide. One compartment reserved for USPS arrow lock
Finish or Material:
All aluminum construction with a clear anodized aluminum finish
Loading and Mounting:
Front loading for full in wall mounting and installation. Tenant mail retrieval and USPS delivery from front of mailbox. One compartment reserved for master / Postal access for delivery to unit.
Tenant Doors:
Tenant doors include 5-pin cam lock with 2 keys each
Door Identification:
Number slot with paper cards for identification. Each tenant door includes clear plastic window w/metal backplate and card for tenant number identification and labeling in the field
Technical Information:
Door Width: 12-7/8""Total Tenant Doors: 11
Tenant Door Height: 5""
Installation:
Installed Height:
Rough Opening Height is 33-5/8"
Installed Width:
Rough Opening Width is 27-1/2"
Installed Depth:
Minimum wall depth of 17" required
Material: Aluminum
