140065PLA - 25 Tenant Doors with 1 Master Door and 1 Parcel Locker - 1400 Series USPS 4B+ Approved Horizontal Replacement Mailbox
Shipping Time
Type: Horizontal 1400
Barcode: 00763128221367
Model: 140065PLA
Subject to Stock and Availability
- Model: 140065PLA
- Weight: 90.00lb
- Dimensions: 17.00in x 33.88in x 33.63in
Horizontal Mailboxes are USPS approved for replacement installations. For new construction, see Cluster Box Units and 4C Horizontal Mailboxes.
Description
Product Details:

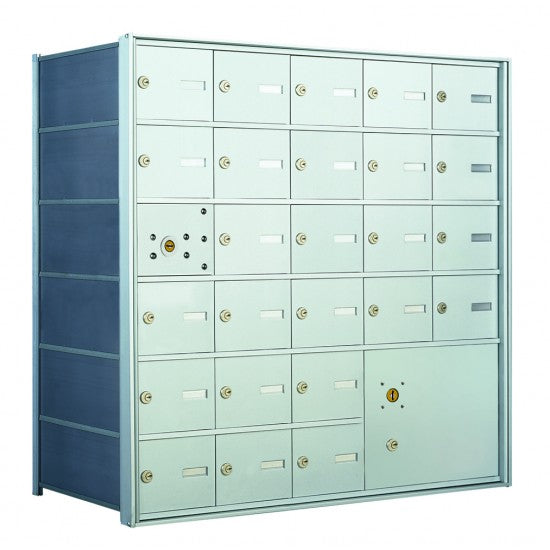

- Horizontal mailbox with 25 doors and 1 parcel locker, front load, fully recessed
- Horizontal mailbox unit is 7 doors high and 5 doors wide. One compartment reserved for USPS arrow lock
Finish or Material:
All aluminum construction with a clear anodized aluminum finish
Loading and Mounting:
Front loading for full in wall mounting and installation. Tenant mail retrieval and USPS delivery from front of mailbox. One compartment reserved for master / Postal access for delivery to unit.
Tenant Doors:
Tenant doors include 5-pin cam lock with 2 keys each
Parcel Lockers:
Includes Parcel locker door - a means of USPS package delivery. Dual, captive locking system allows USPS to deliver a package to the locker leaving the key in the tenant's mailbox. Package is retrieved by the tenant and key is retained securely in the lock for the Postal Service to retrieve and reuse for the next package delivery.
Door Identification:
Number slot with paper cards for identification. Each tenant door includes clear plastic window w/metal backplate and card for tenant number identification and labeling in the field
Technical Information:
Door Width: 6-3/8" "Total Tenant Doors: 25
Tenant Door Height: 5""
Total Small Parcel Lockers: 1
Small Parcel Locker Height: 10-3/8"Hx12-7/8"W"
Installation:
Installed Height:
Rough Opening Height is 33-5/8"
Installed Width:
Rough Opening Width is 33-7/8"
Installed Depth:
Minimum wall depth of 17" required
Material: Aluminum
