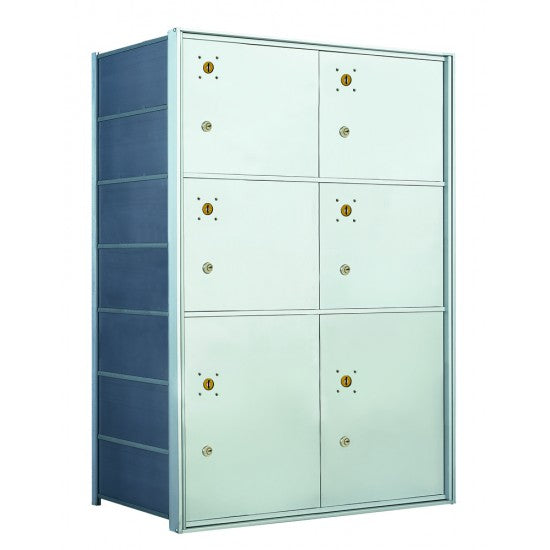

140074PLA - 6 Parcel Lockers - 1400 Series USPS 4B+ Approved Horizontal Replacement Mailbox


Shipping Time


For quicker lead times, chat or call us at 1-866-464-0005 and we will be glad to assist you.

Vendor: Florence
Type: Horizontal 1400
Barcode: 00763128221435
Model: 140074PLA

Subject to Stock and Availability

  • Model: 140074PLA
  • Weight: 84.00lb
  • Dimensions: 17.00in x 27.50in x 39.00in


Horizontal Mailboxes are USPS approved for replacement installations. For new construction, see Cluster Box Units and 4C Horizontal Mailboxes.


Product Details:
  • Horizontal mailbox with 6 parcel lockers, front load, fully recessed
  • Horizontal mailbox unit is 7 doors high and 4 doors wide

Finish or Material:
All aluminum construction with a clear anodized aluminum finish.

Loading and Mounting:
Front loading for full in wall mounting and installation.

Parcel Lockers:
Includes Parcel locker door - a means of USPS package delivery. Dual, captive locking system allows USPS to deliver a package to the locker leaving the key in the tenant's mailbox. Package is retrieved by the tenant and key is retained securely in the lock for the Postal Service to retrieve and reuse for the next package delivery.

Door Identification:
Number slot with paper cards for identification. Each tenant door includes clear plastic window w/metal backplate and card for tenant number identification and labeling in the field

Technical Information:

Total Small Parcel Lockers: 4
Small Parcel Locker Height: 10-3/8"Hx12-7/8"W"

Total Large Parcel Lockers: 2
Large Parcel Locker Height: 15-3/4"Hx12-7/8"W"


Installed Height:
Rough Opening Height is 39"

Installed Width:
Rough Opening Width is 27-1/2"

Installed Depth:
Minimum wall depth of 17" required

Material: Aluminum
