170083A - Standard 24 Door 8 High Horizontal Mailbox Unit - Rear Loading
Shipping Time
Type: Horizontal 1700
Barcode:
Model: 170083A
Description

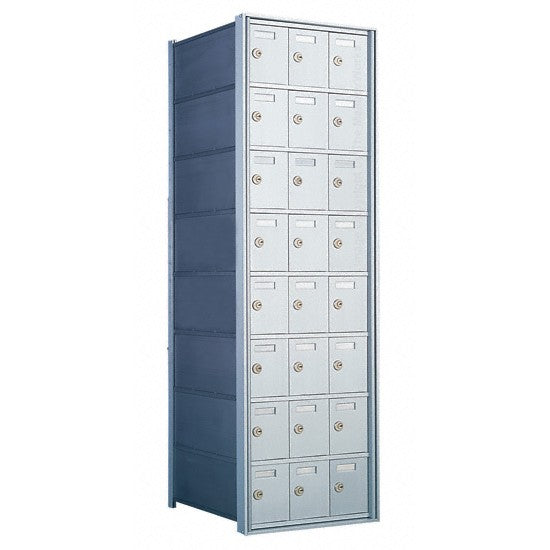

Florence 170083A - Standard 24 Door 8 High Horizontal Mailbox Unit - Rear Loading
The Florence 170083A is a rear-loading, fully recessed horizontal mailbox from the 1700 Series, designed for private mail distribution where mail is loaded from a secure rear room and tenants retrieve from the front. It is not approved for USPS delivery.
Technical Specifications
| Model # | 170083A |
| Total mailbox (tenant) compartments | 24 |
| Product dimensions | 46.63”H x 16.25”W x 16.50”D |
| Rough opening | 44-3/8" H x 14" W (per Florence cut sheet) |
| Minimum wall depth | 17" required |
| Product weight | 56 lbs |
| Construction | All aluminum construction with a clear anodized aluminum finish |
| Door identification | Number slot with paper cards for identification. Each tenant door includes clear plastic window with metal backplate and card for tenant number identification and labeling in the field. |
Compartment Dimensions
| 24 x Standard Mail (1H x 1W Tenant) | 5"H x 4"W x 15.50"D |
Product Features
- Horizontal mailbox, front load with 24 doors, rear load, fully recessed
- Horizontal mailboxes do not meet current USPS requirements for centralized mail delivery - see 4C Mailboxes for USPS Approved wall-mounted mailboxes
- All aluminum construction with a clear anodized aluminum finish
- Rear loading for full in wall mounting and installation - private delivery from rear of mailbox and tenant mail retrieval from front of mailbox
- Tenant doors include cam lock with two (2) keys each
- Number slot with paper cards for identification
- Each tenant door includes clear plastic window with metal backplate and card for tenant number identification and labeling in the field
- Horizontal mailbox unit is 8 doors high and 3 doors wide
Installation Documentation
- 170083 Cut Sheet (PDF)
- 1700 Horizontal Installation Manual (PDF)
- Horizontal Rear Cover Installation Manual (PDF)
- Horizontal Material Specification (PDF)
- Florence Corporation product page: 170083A
SKU Guide
Every variation of this product shares the base model number 170083A = rear-loading horizontal mailbox with 24 tenant doors for private mail distribution, fully recessed.
Frequently Asked Questions
Is the Florence 170083A USPS approved?
No. The Florence 170083A is designed for private mail distribution only and is not approved for USPS delivery. It is served by a private carrier or in-house mail staff.
What rough opening do I need?
The rough opening is 44-3/8" H x 14" W with a minimum wall depth of 17", per the Florence cut sheet. See the manufacturer cut sheet for full details.
Specifications, installation documentation, and resources per Florence Corporation (florencemailboxes.com). California residents see Prop 65 WARNINGS.
